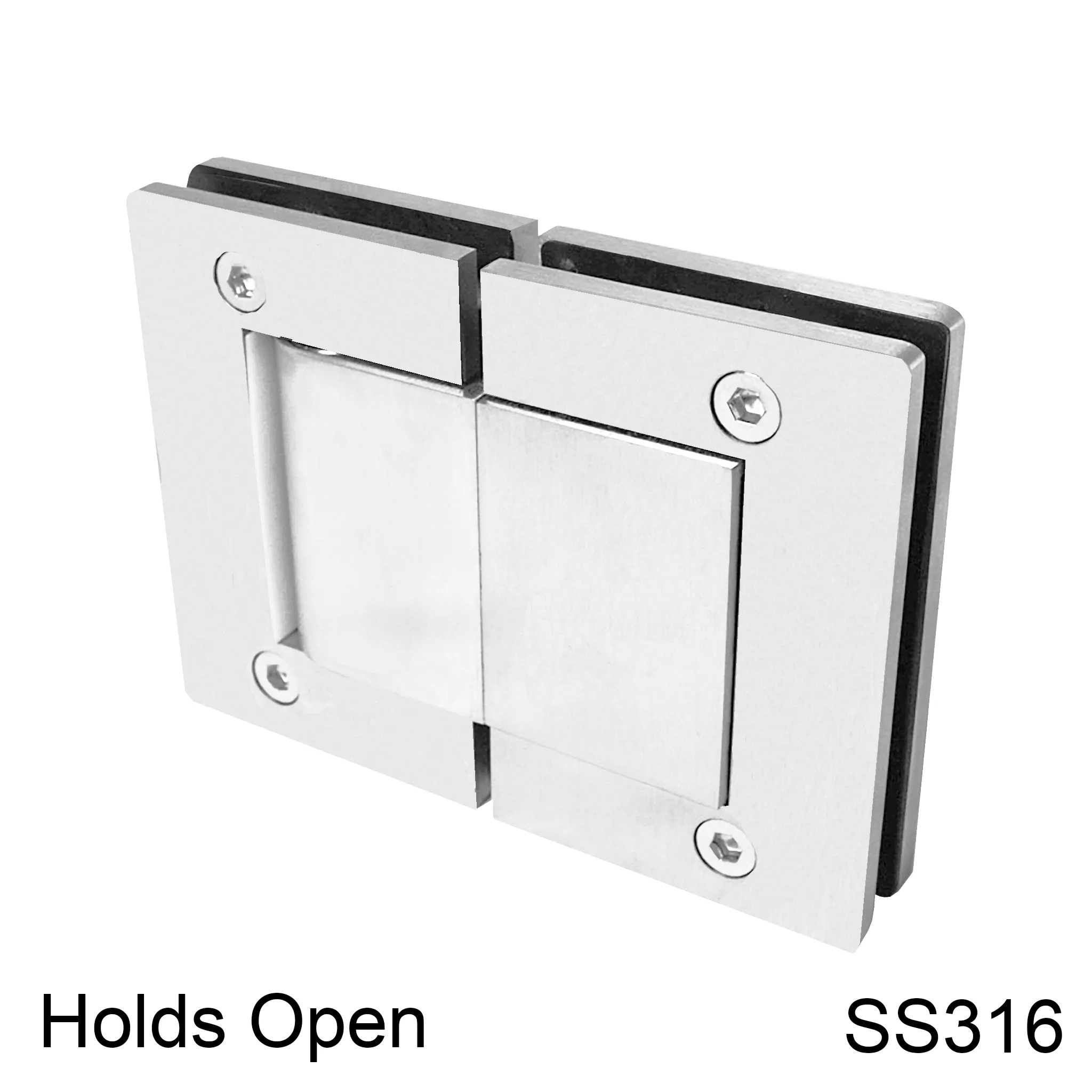

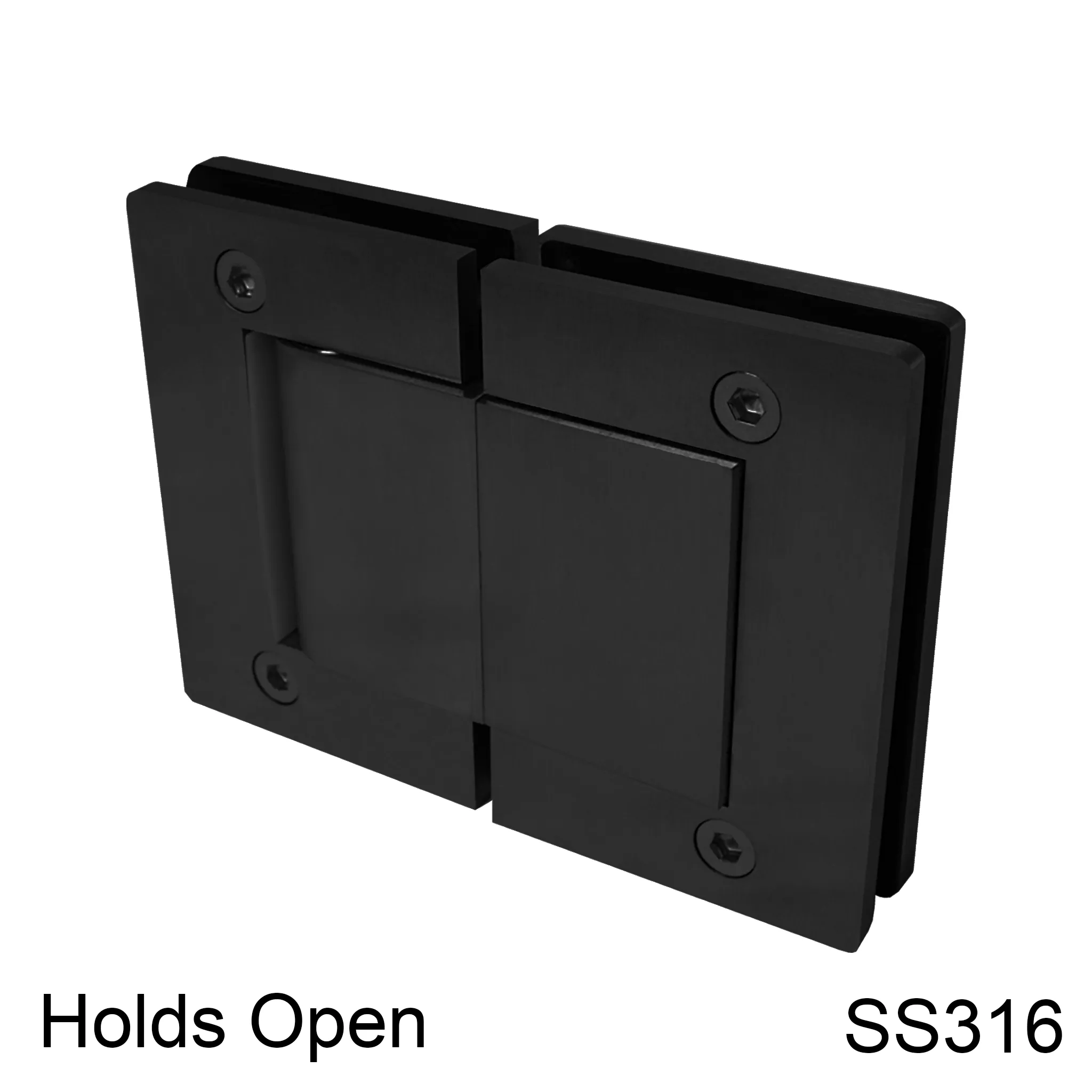

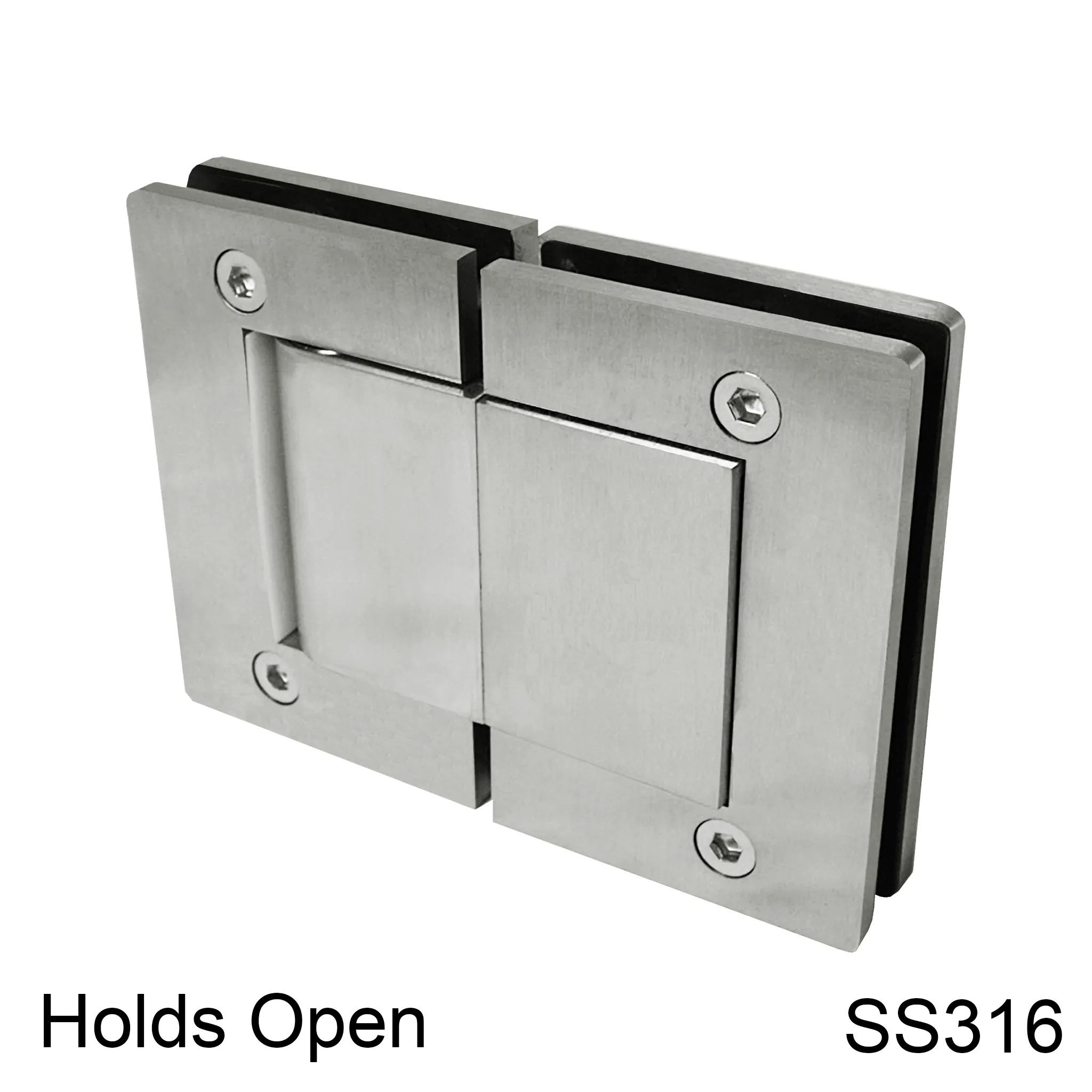

Hulk Series Hydraulic Hinge
[Hydraulic Hinges are sold in pairs - prices are shown for the pair of hinges]
GGH’s Hulk Series Hydraulic Hinge offers a sophisticated solution for glass-to-glass installations, featuring a built-in soft-close function directly within the hinge, eliminating the need for floor or top-mounted closers. This hold-open model conveniently locks doors in place at 90° angles, ideal for spaces where open access is needed.
Crafted from SS316 for exceptional durability and corrosion resistance, it performs well in both indoor and outdoor environments, including as a shower door hinge. The design also preserves the floor’s finish by avoiding any floor-mounted components. Comes in a box of two.
Finishes Available:
- Brushed Stainless
- Polished Stainless
- Black
Key Features:
- Maximum Weight: 60KG (132Lbs)
- Maximum Height: 86" (2200mm)
- Maximum Width: 39" (1000mm)
- Glass Thickness: 5/16" to 9/16" (8 to 14 mm)
- Material: SS316
- Hinge Swings: 95º Inwards and Outwards
- Closing function: Automatic closing from 85º to 0º
- Special Feature: Holds Open at 90º(optional); Closing and latching speed adjustable.
Cut-out required. View CAD/PDF product drawings for more details.
